AVMATRIX

Pro Audio Video Devices

AVMATRIX has specialized in processing high definition video signals for years. It's a high-tech enterprise involved in design, developing, manufacturing and marketing of professional video processing systems. AVMATRIX achieves switching, encoding and de-encoding, and transmission of high definition video signal through FPGA technology. Using advanced design concepts and an abundant history of practical experience. Below is a small selection of products that are available from AVMATRIX. Please contact us for more information. Or visit the AVMATRIX website for a full list of their products.

HDMI and 3G-SDI Mini Converters

Born for Broadcast

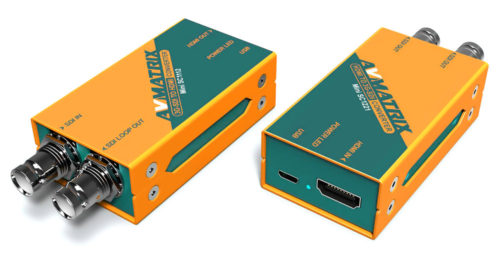

The Mini SC1221 is a Pocket-size broadcast Converter, it converts HDMI input signal to dual SDI signal. The Mini SC1112 converts SDI input signal to HDMI signal and with SDI loop out. It is very convenient for users with the full size SDI and HDMI connectors. Although it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7×24h uninterrupted working without any lag or delay.

Features:

1×HDMI output, with either 3G-SDI input and 3G-SDI loop output, or 2x 3G-SDI output
input signal automatic detection and configuration
LED indicators for power and state of input signal
3.3-5V Wide voltage

HDMI/AV and 3G-SDI Scaling Converters

Scaling & Seamless

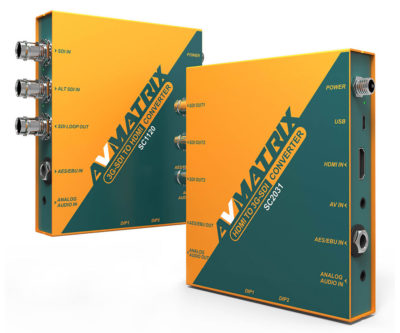

The SC2031 is an exquisite and professional converter to convert HDMI or AV signals to triple SDI signals up to 1080P60Hz. The SC1120 converts SDI signal to HDMI and AV signals at the same time. The format of the output can realize pass through, up/down scaling, or frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC2031 and SC1120 are your ideal choice for broadcasting and AV post production applications.

Features:

SC2031 I/O:
- Input: HDMI×1, AV×1, AES/EBU×1, analog audio×1
- Output: 3G-SDI×3, AES/EBU×1, analog audio×1
SC1120 I/O:
- Input: 3G-SDI×1, Alt 3G-SDI×1, AES/EBU×1, analog audio×1
- Output: 3G-SDI loop×1, HDMI×1, AV×1, AES/EBU×1, analog audio×1
Up/down scaling and frame rate conversion
AES/EBU or analog audio Embedding & De-embedding
Input signal automatic detection and configuration
LED indicators for power and signal lock
Control easily via the DIP switches
Remote control for PC via USB
Threaded locking power connector
Detachable bracket design for wall mounting

3G-SDI Fiber Optic Extender

20km Transmission

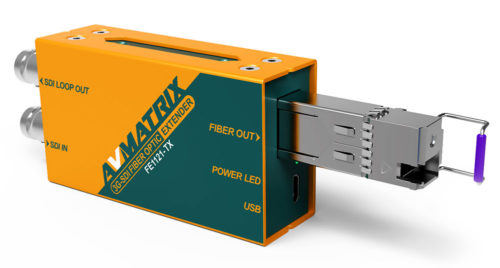

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.

Features:

20km transmission distance
Support 3Gbit Level A and Level B (all formats)
SFP/ LC Fiber transmitter & receiver
SDI equalization and re-clocking
3G-SDI input & loopout on transmitter
Dual 3G-SDI outputs on receiver
SDI input automatic switching SD, HD & 3G
USB power supply

Quad Split Multi-viewer

4 Channel SDI Multiviewer

MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.

Features

4×SD/HD/3G-SDI inputs with auto detection
2×SD/HD/3G-SDI and 1×HDMI outputs for multiview
11 selectable SDI & HDMI output formats
Up/down scaling and frame rate conversion
16 preset layouts,Support both full-screen and multiview mode
11 character UMD overlay, support custom position and color
Audio level meter overlay, support custom position
Control easily via the DIP switches
USB port for keyboard control
LAN port for control and firmware update
Threaded locking power connector
Detachable bracket design for wall mounting
