Product Overview

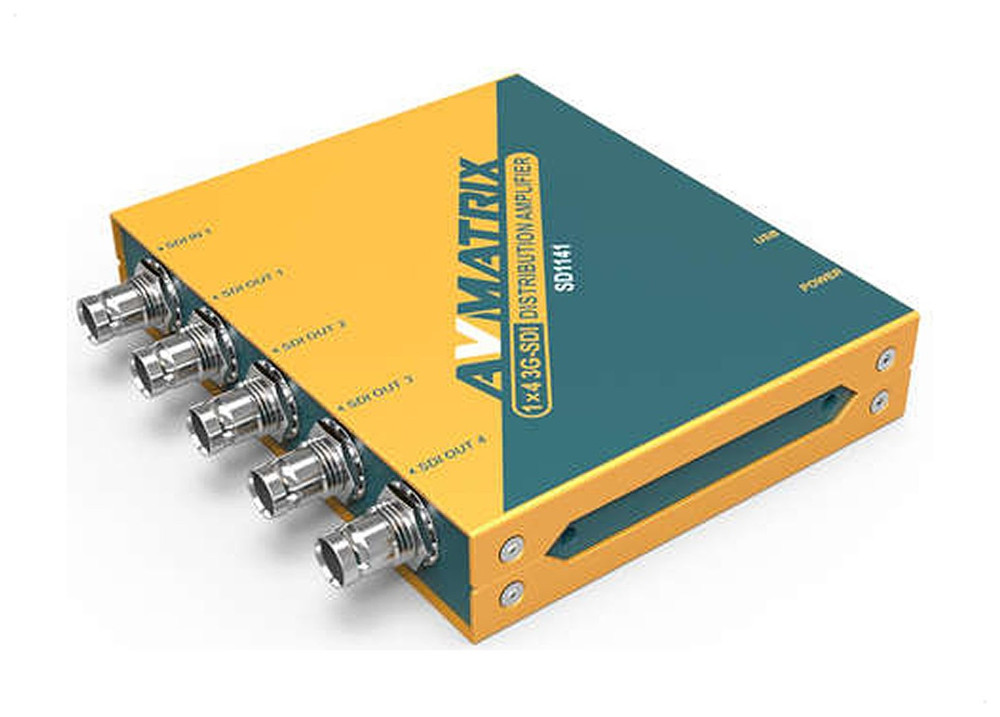

SD1141 3G-SDI 1×4 Reclocking Distribution Amplifer - (1×SDI in, 4×SDI out. Automatically detects SD, HD and 3G-SDI. Output 2 & 4 support DVB-ASI signal. Automatic cable equalization and signal retiming. LED indicators for power and signal lock. Micro USB and DC power. Detachable bracket design for wall mounting)
The SD1141 is a miniature, low-cost 1x4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.
Features
- Automatically detects SD, HD and 3G-SDI
- 4 buffered and re-clocked outputs
- 3G/HD/SD-SDI multi-rate signal processing
- Output 2 & 4 support DVB-ASI signal
- Automatic cable equalization and signal retiming
- Pass all ancillary data and embedded audio
- Micro USB and DC power
- Detachable bracket design for wall mounting
1x4 Distribution
SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080p 60Hz. Output 2 & output 4 support DVB-ASI signal.120m SDI Re-clocking
SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter's processing. This allows longer cable lengths (3G: 120m, HD: 200m, SD: 400m).Widespread Application
SD1141 is ideal for use in broadcast and video production facilities, command and control conters, medical imaging facilities, rental and staging, and other applications.For more information on the AVMATRIX SD1141 3G-SDI 1×4 Reclocking Distribution Amplifer, click here!
Warranty Information
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
