Product Overview

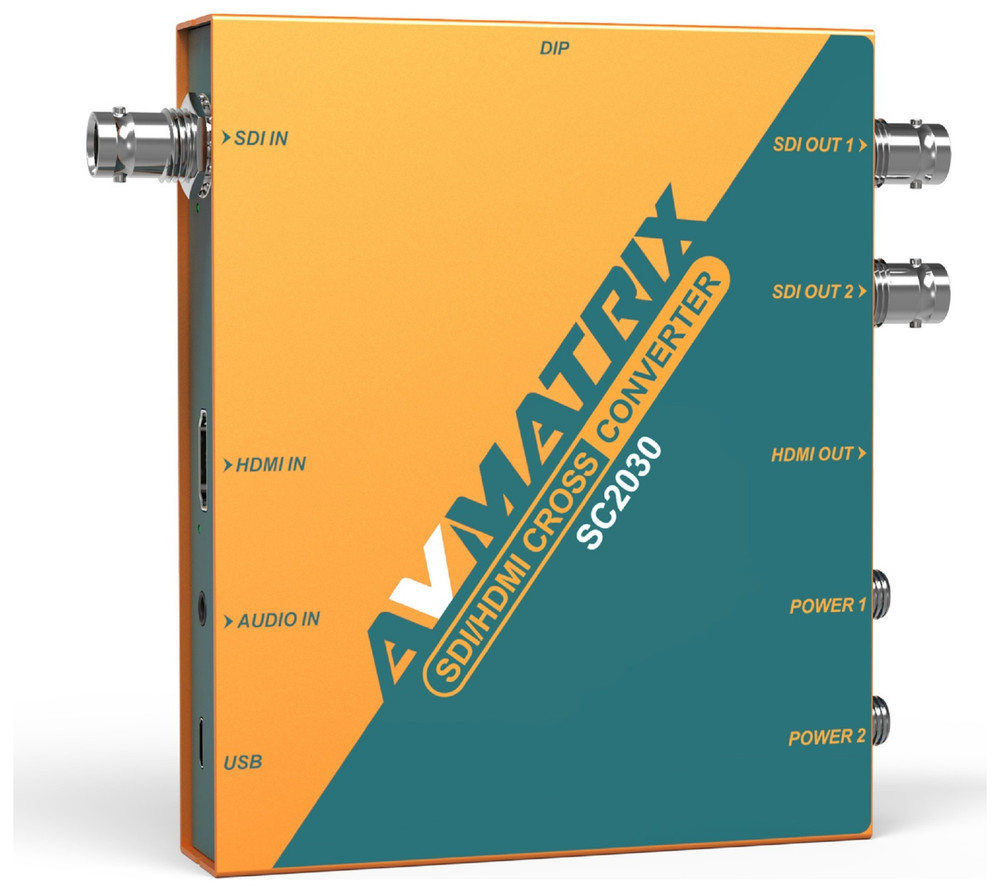

SC2030 3G-SDI/ HDMI UpDownCross Converter - (Input: HDMI×1 or SDI×1, analog audio×1. Output: 3G-SDI×2, HDMI×1. Up/down scaling and frame rate conversion. Analog audio Embedding. HDMI/SDI Input automatic detection and configuration. Control easily via the DIP switches. USB is used for PC software control and power supply. Dual threaded locking power, for redundant power supply. Detachable bracket design for wall mounting)
Up/Down Scaling and Frame Rate Conversion
The SC2030 has a variety of transformation combinations to realize the inter-rotation of various resolutions between SDI/HDMI. When you choose either SDI or HDMI input, both SDI and HDMI output at the same time. There are multiple signal converion functions to meet a variety of HD video conversion needs. When SDI and HDMI input signals are connected at the same time, the default priority is SDI signal input.Audio Embedding
Embed an external analog sudio to both SDI & HDMI outputs. The most commonly used 3.5mm interface makes it easy to add external audio signals to you SDI/HDMI video output.Easy Control with DIP Switches and PC
Adjusting the DIP switches to set the functions to easy to do with you fingers, no tool required. It's a quick was to change common settings quickly when on the go. Meanwhile, you can also change settings remotely by using software, connected via USB. The desktop software can also be used to upgrade the SC2030 firmware to the latest version.Features
- Input: HDMI×1 or SDI×1, analog audio×1
- Output: 3G-SDI×2, HDMI×1
- Up/down scaling and frame rate conversion
- Analog audio Embedding
- HDMI/SDI Input automatic detection and configuration
- Control easily via the DIP switches
- USB is used for PC software control and power supply
- Dual threaded locking power, for redundant power supply
- Detachable bracket design for wall mounting
For more information on the AVMATRIX SC2030 3G-SDI/ HDMI UpDownCross Converter, click here!
Warranty Information
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
