Product Overview
MPR50-IEM - Wideband True Diversity IEM Receiver
Give us a Call, or send us an email to request a quote for this product.

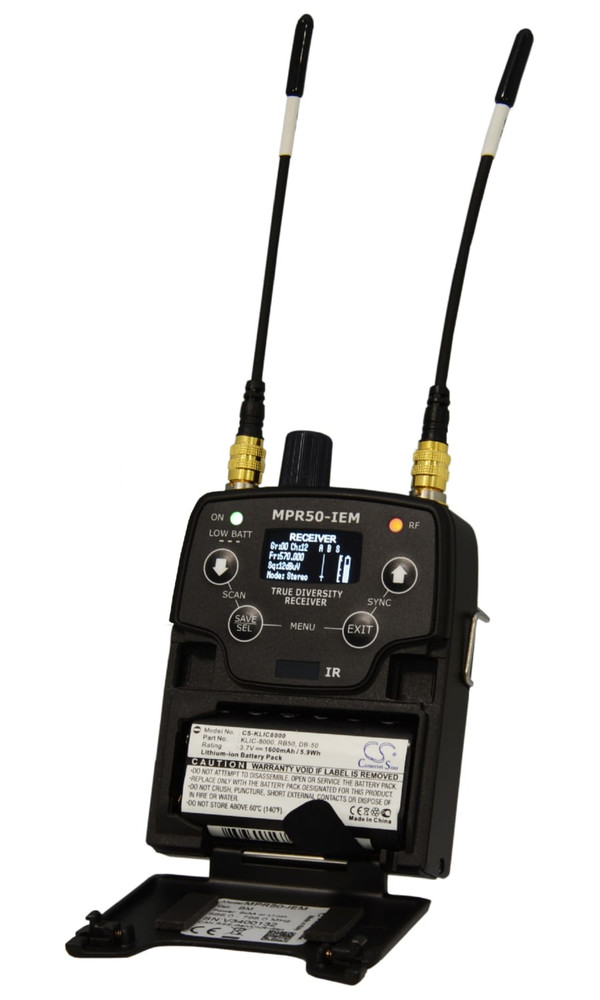

MPR50 is a compact true diversity receiver designed for professional in-ear monitoring aapplications. This receiver features a real TRUE DIVERSITY configuration along with a unique wide-band tuning range up to 232 MHz. Audio processing can be Stereo MPX or mono based. The output audio stage is especially design to have maximum audio peak-dynamic of 200 mWatt. Very easy and versatile thanks to its Oled display, navigation button controls, infrared and automatic scan.
Battery management is very flexible since MPR50 allows use of standard battery pack. Charging can be done with dedicated charger or thru the integrated micro-usb-B connector.
- – 2 AA NiMH or Alkaline
- – C3-V3 battery pack
- – MPRLBP (Cameron Sino reference No: CS-WMR500SL) or CR-V3R lithium (i.e. DR9708 duracell)
- Charging can be done with dedicated charger or thru the integrated micro-usb-B connector.
FEATURES
- Up to 232 MHz bandwidth in 470/798 MHz range
- TRUE DIVERSITY RECEIVER with 2 whip antennas
- 200 mW peak audio power
- Separate release/attack compander
- Miniature design with 2 AA battery pack integrated (body-pack form factor) or rechargeable lithium pack
- Easy to use thanks to an OLED display
- Dedicated function buttons & frequency scan function
- Automatic receiver programming thru infrared and micro-USB
- FM Stereo mode for MPX decoding with mix-mode function
- FM IFB mode with NARROW-BAND modulation to enhance noise immunity and coverage (SW selectable)
For more information on the Wisycom MPR50-IEM - Wideband True Diversity IEM Receiver, click here!
