Product Overview
MRK16 - 16 Channel UItra-Wideband Wireless System
Give us a Call, or send us an email to request a quote for this product.

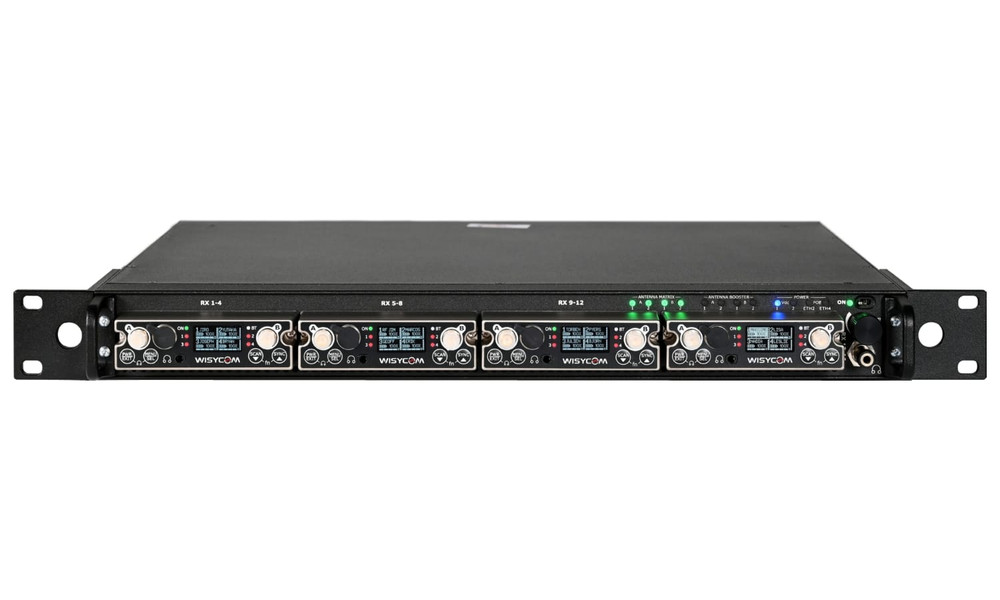

MRK16 is a modular wireless-microphone receiver system that fit up 16 channels in a compact 19” 1RU alluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).
FEATURES
- Up to 16 true diversity channels in a compact 19” 1U rack (4x MCR54)
- Ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filters
- RF Over Fiber for reception without distance limits! The optional fiber module EXP3 allows to replacement of coaxial cable and antennas located miles away
- Multiple audio outputs: Digital, Dante, and Analog
- Dual Area Matrix to select and combine 2 diversity zones. Antenna booster and remote control of Wisycom LFA/ADFA/BFA.
- Bluetooth 5 Long Range: Class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.
- Daisy chain up to 4 racks for 64 channels in only 4U
- 5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)
- Redundant (dual) power supply on XLR
- Dual Power Over Ethernet input and PoE output (PE1 optional)
- USB-C connectivity with powering (1.5A)
For more information on the Wisycom MRK16 - 16 Channel UItra-Wideband Wireless System, click here!
Warranty Information
12 Month Limited Manufacturer's Warranty. If you need contact us with an issue, please send an email to support@onair.com.au with the serial number or invoice number to create a support case.
