Product Overview

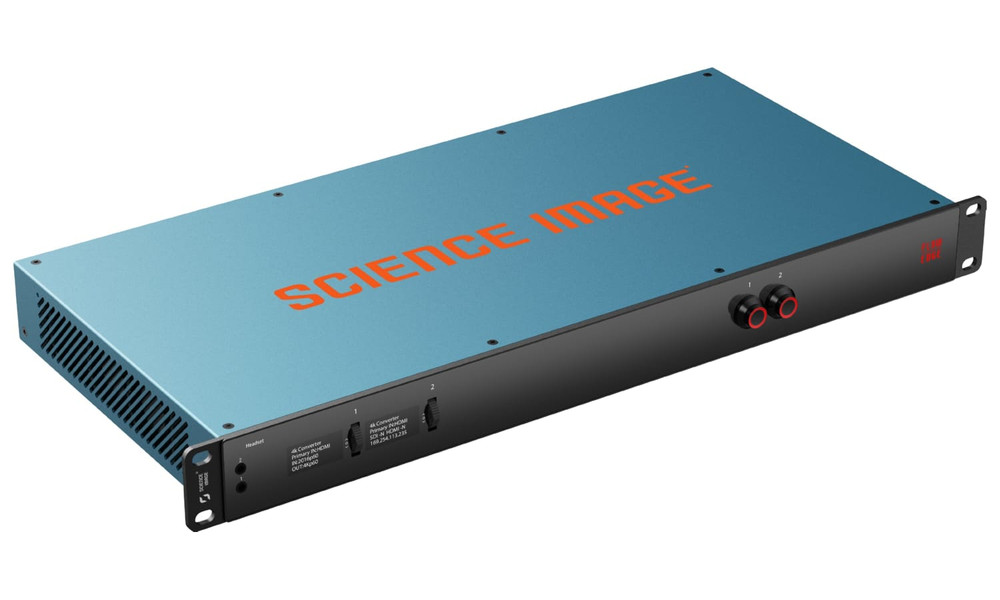

Flow Edge G 2ch - 1RU 4K Up/Down/Cross Converter w/ Genlock
Encode and decode full NDI video with this Flow Edge G 2-Channel 4K Up/Down/Cross Converter with Genlock from Science Image. This converter enables bidirectional conversion to and from two HDMI and 12G-SDI inputs and outputs. This convenient 1 RU rackmount unit supports up to DCI/UHD 4K60 video with up/down/cross conversion to multiple formats, Gigabit Ethernet control, analog audio I/O, tally, genlock, and optional fiber connections to add high-bandwidth video transport to your live broadcast, studio, or digital signage.
Additional Details
- 2-channel rackmount up/down/cross converter with fiber TX/RX and analog audio input/output
- Up/down/cross conversion of 35 formats
- Video I/O: Two 12G-SDI inputs and outputs, two HDMI 2.0 inputs and outputs
- Resolution: Up to UHD 4K 3840 x 2160p60
- Genlock: Two genlock inputs
- Audio I/O: Two 3.5mm stereo headphone outputs, two 3.5mm stereo line inputs
- Display: Two 1.3" OLED screens with status, video format, IP address, and more
- Control: Scroll wheel buttons for direct menu operation, Web UI control
- Audio function: Audio embed/de-embed from stream, 2-way intercom per channel
- Network: Two RJ45 Gigabit Ethernet, two optical fiber SFP+ interfaces for optional 12G-SDI transceiver
- Power: AC power input, two LED illuminated power buttons
For more information on the Science Image Flow Edge G 2ch - 1RU 4K Up/Down/Cross Converter w/ Genlock, click here!
Warranty Information
12 Month Limited Manufacturer's Warranty. If you need contact us with an issue, please send an email to support@onair.com.au with the serial number or invoice number to create a support case.
