Product Overview
FE1121 20km 3G-SDI Fiber Optic Extender - (20km transmission distance. Support 3Gbit Level A and Level B (all formats). SFP/ LC Fiber transmitter & receiver. SDI equalization and re-clocking. 3G-SDI input & loopout on transmitter, Dual 3G-SDI outputs on receiver)

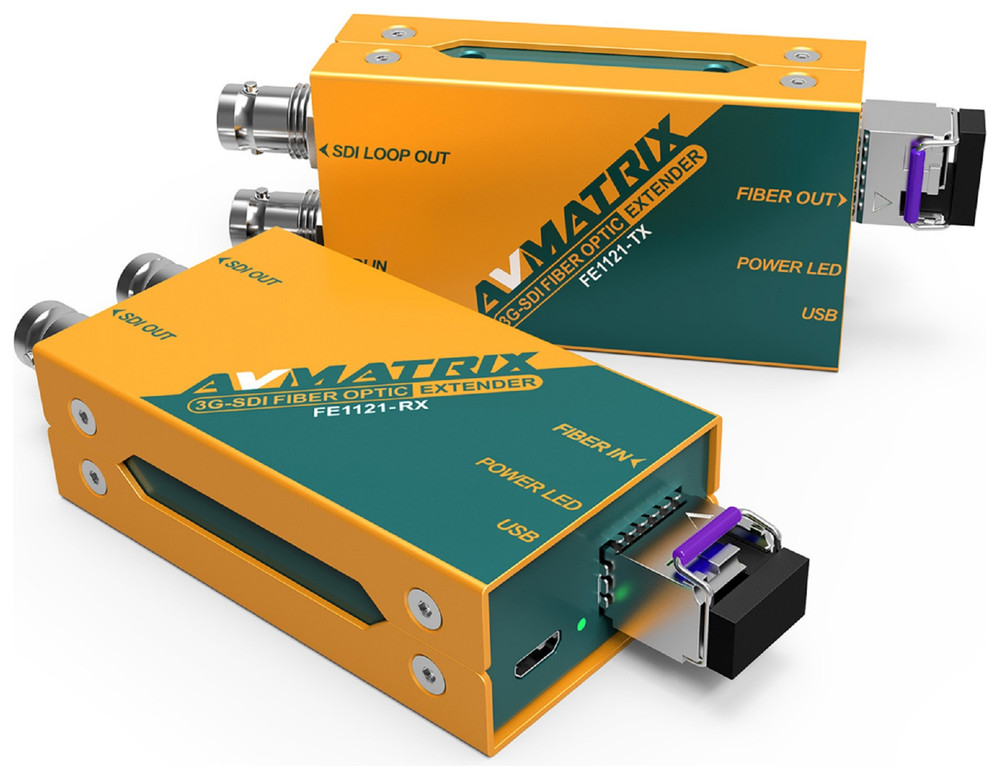

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.
Key Features
- Extends HD/SD signals up to 3G-SDI, 1080p over single-mode LC fiber optic cable
- Supports range of up to 12.5 miles
- SDI input and loop out, LC single-mode fiber output on transmitter
- LC single-mode fiber input, dual SDI outputs on receiver
- Supports metadata and 16-channel embedded audio
- Signal re-clocking
- Compact, USB-powered form
For more information on the AVMATRIX FE1121 20km 3G-SDI Fiber Optic Extender, click here!
Warranty Information
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
