Product Overview

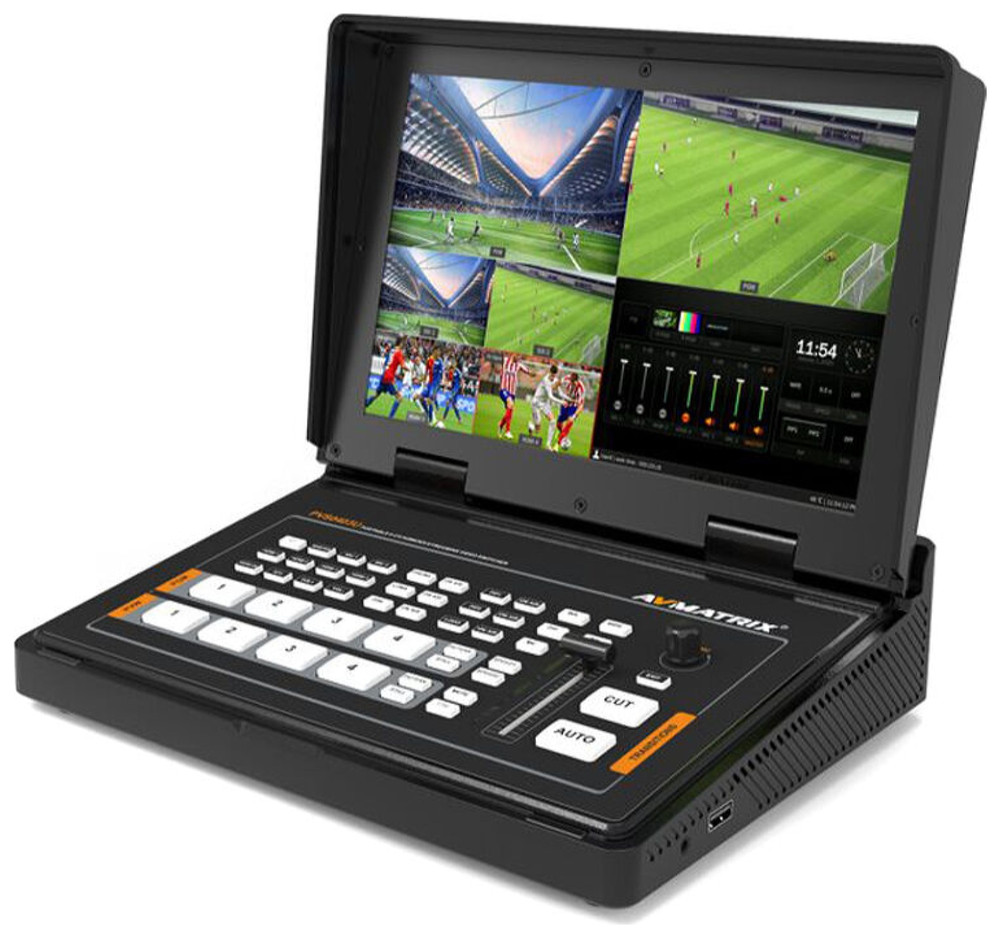

PVS0403U Portable 4-Ch HDMI SDI Multi-format Streaming Video Switcher - (Portable design with build-in 10.1'' FHD monitor. 4 channel auto-detected inputs: 2HDMI+2SDI. 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output. AUX output configurable and assignable. USB for capturing and streaming on PC. Upstream key: Luma key, Chroma key, PIP×2/ POP. Downstream key and LOGO overlay. T-bar/ Auto/ Cut, various effects: WIPE(9×2 patterns) / MIX/ DIP. Audio mixer: HDMI embedded audio & 2-Ch MIC/line In, audio delay. Media: 49 default patterns, 16 imported images, 16 captured images. FTB/ MUTE/ STILL/ GPIO for tally/ PC software)
Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetectable inputs, the HVS0403U is a compact and user-friendly video switcher loaded with an integrated 10.1" Full HD IPS LCD monitor and many powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or the T-bar.
Bring in four separate sources for switching up to 1080p60 video with embedded audio, or mix in additional audio originating from two analog stereo 3.5mm mic/line inputs. An HDMI output with multiview support provides ideal previewing functions, and two HDMI program outputs with scaling features give you flexibility for sending simultaneous signals to a display for live events and a recording terminal for editorial consideration. There is also a USB-C video output to connect to a computer for video capture and live streaming, while a LAN port enables you to control the switcher using software via IP.
USB Capture for Streaming
Connect the switcher to a computer via the USB-C output and use software like OBS, PotPlayer, or vMix to realize live streaming on YouTube, Facebook, Twitter, and other social media platforms. Logo overlays are supported from a variety of different image file formats, including PNG, JPG, and BMP, and you have the option of capturing up to 16 screenshots and storing up to 16 images using the USB-A input with 39 default patterns and two color generators. A tally interface supports GPIO, still frame, mute, and fade-to-black (FTB) functionality.Upstream and Downstream Keying
The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.Transition Effects
There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.Powerful Media Management
The media management functions feature 39 preset patterns, and users can import images from a USB thumb drive or capture and store the screenshot image originating from SDI1, SDI2, HDMI3, HDMI4, clean PGM, and PGM.Audio Mixing and Audio Follows Video
Easily mix the embedded audio from the two HDMI and two SDI sources or set the embedded audio function to AFV (audio follows video) mode. You can also bring in two external audio sources via the unit's two 3.5mm analog (mic/line) inputs.- 10.1 inch FHD IPS LCD monitor
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/line In; audio delay available
